7 Important Things to Know Before You Print Architectural Drawings

Whenever you print architectural drawings you want to ensure that all the major details have been checked. Here’s why:

Coming up with great architectural designs takes time and requires a lot of work. But, it will be disappointing if all that hard work is ruined on account of bad print quality. The first worry would be how to present such to your client, followed by the waste of resources involved.

Several factors can ruin the quality of your architectural drawing prints. For instance, low-resolution files, incorrect scaling, poor line weight settings, and using the wrong paper type can all affect readability. Additionally, using outdated or low-quality printers can result in faded lines or smudges which details hard to interpret.

Now, before you search for queries like “blueprint printing services near me” or “where to print architectural drawings” you must first understand the value of quality architectural prints. So, we’ll discuss this first.

Why quality architectural printing is important?

The reputation of your brand depends on it. Imagine getting paid a lot to come up with an architectural drawing concept. And, it gets ruined because of a faulty printer or lack of due diligence on the part of who had carried out the print job. Keeping in mind that poor print can make your brilliant design look rather amateurish, it’s not a chance you want to take.

That said, here are some other reasons to prioritize quality with your architectural prints:

• Professional presentation: High-quality architectural blueprints are essential for client presentations. This can give clients a good perspective on the clarity of your work. For instance, a well-printed construction plan indicates that you pay attention to details, a pretty important skill for an architect. This builds confidence in your work.



• Accurate communication: Architectural drawings are an important aspect of work on the construction site. Clear, legible prints ensure that everyone involved in the project understands the design intent. This also makes it easier to communicate your design requirements with those who will be executing them. It’ll save you from a lot of back-and-forth, which can delay the progress of your project.



• Cost savings: This may not be obvious, but investing in quality prints can save you money in the long run. Accurate architectural blueprint printing can reduce the need for unnecessary reprints during your project. This is particularly achievable if you outsource to a good construction plan printing company.

PrintMyDrawings is your best plug for floorplan printing and blueprint services. Placing your order is easy and delivery is swift.

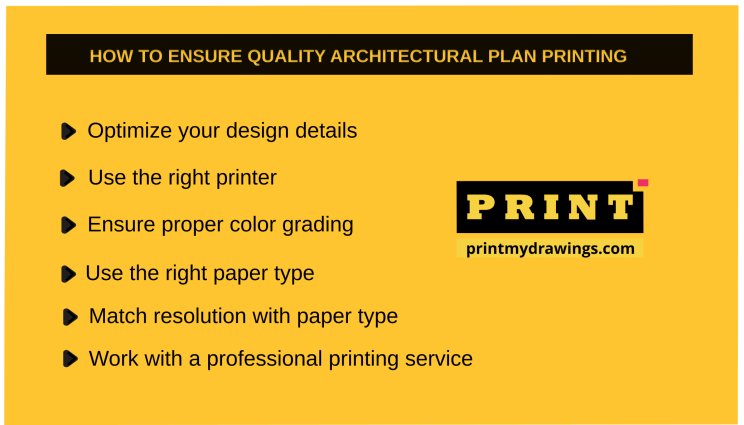

How to print architectural drawings with quality output

Here are a few ways to ensure that your architectural drawings and printed plans come out with good quality:

01. Optimize your design details

Ensure that every detail has been considered: the paper grade, ink type, orientation, and other relevant settings should be suitable for the type of drawings you intend to print. Whether you are going for colored or black-and-white architectural prints, the attention you pay to even the smallest details will determine how your prints turn out.

So, here are a few things to keep in mind:

• Use high-resolution files. Vector-based files like DWG or DXF are ideal because they be scaled without losing quality in the output.
• If you’re using raster images like JPG or PNG, ensure the DPI (dots per inch) is high enough for the intended print size. A low-resolution image will make the printed architectural plan look blurry.
• Pay close attention to line weights and styles in your CAD software. Use varying line weights to create a visual hierarchy and distinguish different elements (e.g., walls, doors, windows, dimensions).

Another thing you want to do is organize your CAD drawings using layers. This will allow you to control the visibility of differing elements during printing. You can selectively turn on or off layers to emphasize certain information or create different print sets for various purposes (e.g., structural, electrical, plumbing).

02. Use the right printer

There are many printers available, and it is easy to get one that will ruin your work without even trying. If you do not know how to tweak your gadget for the right results, you will always encounter problems with printing quality. For instance, if your printer isn’t calibrated correctly or doesn’t handle large-format printing well, your prints might be scaled incorrectly.

So, understanding how to set up and fix key functionalities with your printer will help you find your way around it when you aren’t getting the right results.

For the best prints, you may want to invest in a large-format printer or plotter. Choose one with a minimum resolution of 600 DPI. But, a higher resolution would be better. You should also decide whether you need a plotter that uses ink or toner. Inkjet plotters are often preferred for their ability to produce fine lines and vibrant colors, while laser plotters are known for their speed and cost-effectiveness.

While the idea of getting your printer sounds nice, it may be cost-intensive and the long-term maintenance could pose a challenge. That’s why many professionals prefer outsourcing construction printing services to ensure precise, high-quality prints without the hassle of upkeep.

PrintMyDrwawings is a trusted architectural drawing print shop with the right technology to deliver precise, high-quality prints. Working with us ensures your drawings are clear, accurate, and presentation-ready without dealing with equipment costs or upkeep. If you place an order, you can get your drawings within 24-72 hours.

03. Ensure proper color grading

Sometimes, the colors on your printed architectural drawings may not match what you see on screen. This happens due to differences between digital displays and print outputs. To avoid washed-out or inaccurate colors, you need to understand how to prepare your files for printing.

Make sure to retain the original colors and apply necessary corrections before printing. Factors like resolution, layering, contrast, and brightness all impact how colors appear on paper. Using the right color mode—such as CMYK instead of RGB—also helps achieve accurate results.

Additionally, consider running a test print before finalizing large orders. A small-scale proof allows you to catch color inconsistencies and make adjustments as needed. This extra step can save time, reduce waste, and ensure your final prints look exactly as intended.

04. Print architectural drawings with the type of material/ paper

The type of paper or material you print on plays a major role in the final quality of your architectural drawings. Are you using plain paper, matte, glossy, or a specialized material? Each option affects how lines, colors, and details appear. For instance, glossy paper enhances color vibrancy, while matte paper reduces glare for better readability. Choosing the right material ensures your prints are both professional and functional.

Beyond material type, the condition of your paper matters just as much. Printing on crumpled, torn, or rough-edged sheets can lead to distorted lines, ink smudging, or uneven prints. Even slight imperfections can make architectural drawings look unprofessional or difficult to interpret. High-quality prints require high-quality materials, so always inspect your paper before use.

Remember the printer is not a magic wand and will only produce with what has been provided.

05. Match resolution to output size

Size is another important element of floorplan printing. Ensuring that your design’s resolution matches the size of the output material is key to maintaining clarity and accuracy. As we mentioned earlier, a resolution that’s too low would mean that the printed drawings may appear blurry or pixelated. On the other hand, an excessively high resolution can lead to unnecessary file sizes, which may slow down processing without improving print quality.

So, when preparing your architectural drawings for printing, check that your resolution is appropriate for the scale you’re printing at. A common standard is at least 300 DPI (dots per inch) for sharp and precise prints. Any mismatch between resolution and print size can distort fine details, and affect the readability of your plan.

If you’re outsourcing your prints, always specify the correct resolution and scaling to your print provider. A professional print shop would typically ensure your files are optimized for the best output and ensure your designs come out exactly as intended.

Conclusion: Consider working with a professional service

High-quality architectural drawing prints are essential for clear communication, accurate construction, and professional presentations. Whether you’re submitting plans for approval, sharing designs with clients, or using them on-site, every detail must be sharp, legible, and true to scale. Poor prints are a major red flag.

So, to recap, here’s what to know before you print architectural drawings. First, be sure to optimize your design details, use the right type of printer, and ensure color grading is adequate, Also choose the right quality of materials to ensure your architectural prints come out as intended. Finally, you need to match the resolution to your desired output size to avoid any distortions in your output.

These may not seem like many details to remember, but they can be easy to overlook when juggling a busy schedule and other aspects of your design project. Instead of dealing with costly reprints, errors, and wasted resources, it’s best to work with professionals who understand every detail required for high-quality prints.

PrintMyDrawings can handle the technical aspects of printing your architectural drawings, ensuring they come out precise, clear, and ready for use. You can place your orders here.

---

FAQs for printing architectural drawings

Now that you know the important details about printing architectural drawings, let’s answer some common questions.

What size should architectural drawings be printed?

The common size for printing architectural drawings is 18″ x 24″ and 24″ x 36″. For larger, more complex projects requiring greater detail, you can use larger sizes like 36″ x 48.” The appropriate print size depends on the complexity of your project and the level of detail required for clarity.

What is used to print architectural drawings?

Bond paper is an excellent choice if you want to print architectural drawings. This is due to its durability and ability to produce crisp lines. There are several other paper types like vellum, matte, glossy paper, and so on.

Which printer is useful for producing architectural drawings?

Large format printers are the best choice for printing architectural drawings. They are specifically designed to handle the large paper sizes that are required for architectural plans or blueprints. These printers also accommodate various media types and can handle the high volume of printing often needed in architectural projects.

Where can you print quality architectural drawings?

You can print architectural drawings on printmydrawings.com. We offer large-format printing, cater to bulk orders, and deliver to your preferred location.

---
